Moving Head Light Series

(SL-823) 230W Moving Head Beam Light

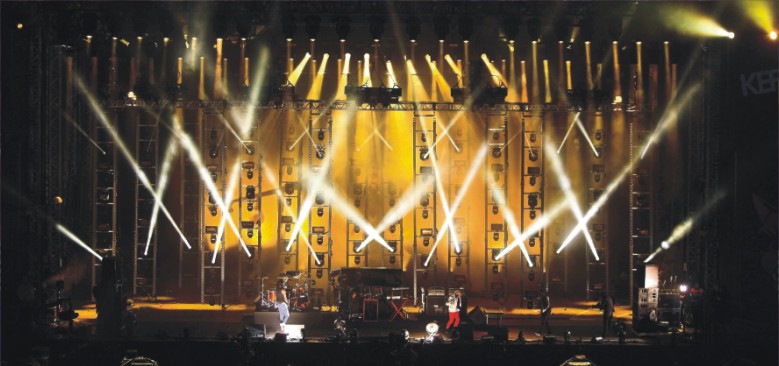

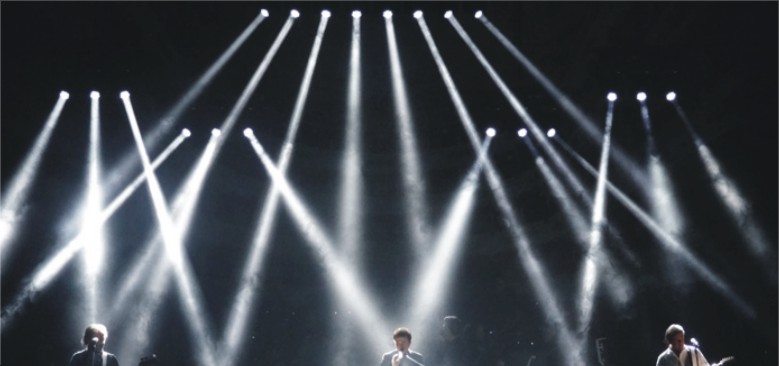

		Demo

Technical parameter

Voltage :AC110-240V/50-60Hz
Lamp: 230W OSRAM 7R
Power :550W
Control Signal: DMX512
Control Channel: 16CH
Size: 440×410×540mm
N.W : 17KG
G.W: 22KG
Luminous flux of 8000lm, color temperature can reach 8500K.
Inductance ballast and AC / DC switching power supply.
Beautiful dot matrix display, four switches, reverse 180 degrees.
The color wheel: a color wheel, each color plate consists of 14 color
temperature film and white.
Gobo wheel: 17 gobo and white, with gobo Shaking
Effect wheel: a rotatable eight prism, effect moving and frost.
0 - 100% mechanical dimming, support mechanical strobe and
adjustable speed stroboscopic effect stroboscopic macro function. 　　
Lens optical system, electric focus, beam angle of 0 to 4 degrees.
Using photoelectric reset system, automatically reset when accidental
mis-operation.
Channel :16CH
Horizontal 540 degree, resolution of 8 bit / 16B bit
The vertical resolution of 270 degree, 8 bit / 16 bit.
Overheat protection
Protection grade: IP20
Feature
